The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

Here’re where the gloves come off—the Levo Expert brings it with SRAM’s new AXS GX Eagle Transmission 12-speed drivetrain, dialed-in FOX Performance Elite suspension, and a high-performing Roval Traverse wheelset.

Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

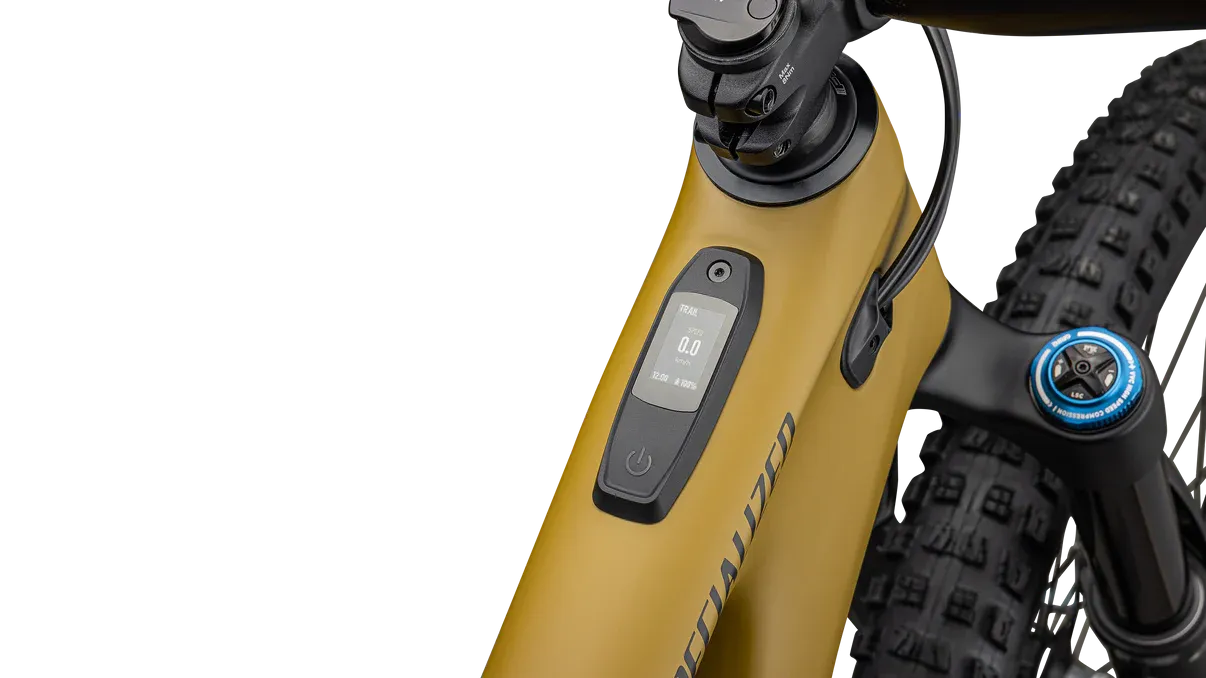

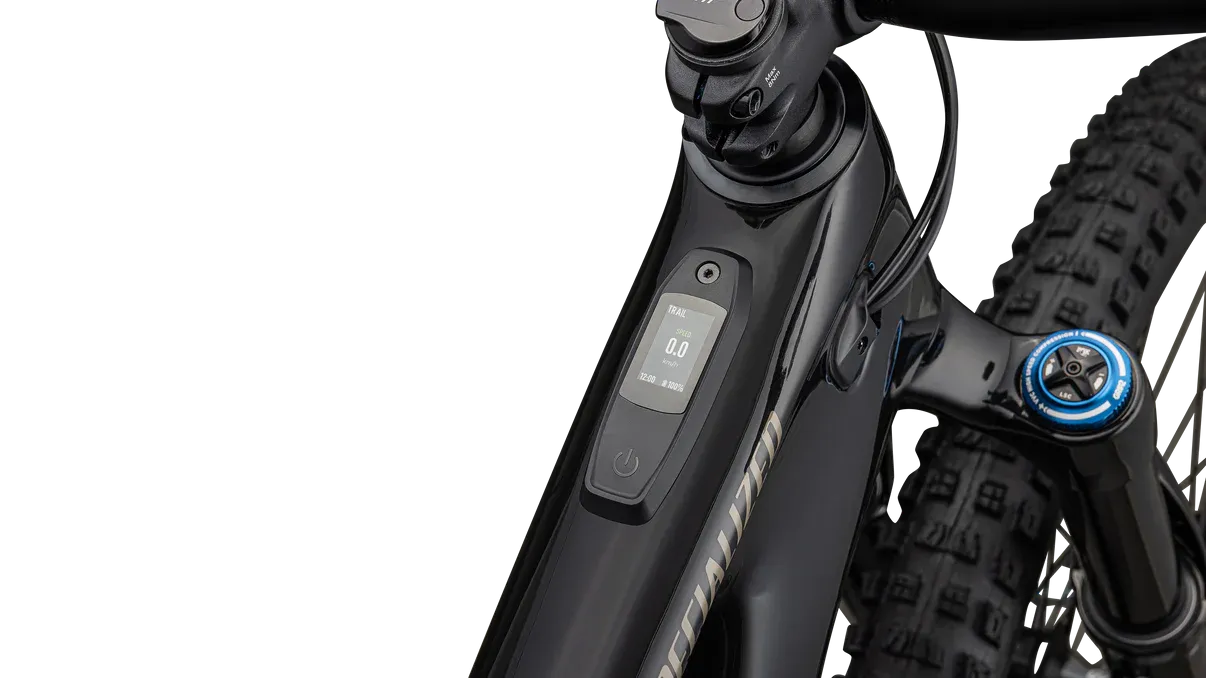

The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

Specs

Frame FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
SWAT CC steerer tube integrated tool with chain tool and link
Fork Fox 38 Performance Elite, Grip 2 damper, 29", 160mm travel, 44mm offset
Rear Shock S2-S6: Fox Float X2 Performance Elite series, 210x55mm, S1: Fox Float DPS Performance Elite series, 210x52.5mm
Stem Alloy Trail Stem, 35mm bar bore
Seat Binder Alloy, 38.6mm
Saddle Bridge Comp, Hollow Cr-mo rails, 155/143mm
Grips Deity Grips
Seat Post OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
Handlebars Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
Front Brake SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 220mm rotor
Rear Brake SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 220mm rotor
Crankset Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Shift Levers SRAM AXS POD Controller
Chain SRAM GX Eagle Transmission Flattop Chain
Chainrings New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Cassette SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Rear Derailleur SRAM GX Eagle Transmission Derailleur
Front Tire Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Inner Tubes Standard, Presta Valve
Rear Wheel Traverse 27.5
Front Wheel Traverse 29
Wiring Harness Custom Specialized wiring harness
Charger Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Motor Specialized 2.2 Custom Rx Trail Tuned Motor
Battery Specialized M3-700, Integrated battery, 700Wh
UI/Remote Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT /Bluetooth®, w/Handlebar remote
Weight 23.04kg (size S4)

Geometry

	S1	S2	S3	S4	S5	S6
BB Drop	25	27	27	27	27	27
BB Height	352	350	350	350	350	350
Bike Standover Height	752	776	783	787	788	790
Chainstay Length	442	442	442	442	442	442
Crank Length	160mm	160mm	160mm	160mm	160mm	160mm
Fork Length (full)	557	567	567	567	567	567
Fork Rake/Offset	44	44	44	44	44	44
Front Center	738	760	784	814	843	878
Handlebar Width	780mm	780mm	780mm	780mm	780mm	780mm
Headtube Angle	64.5	64.5	64.5	64.5	64.5	64.5
Headtube Length	105	105	115	125	135	145
Max Seatpost Insertion	210	220	240	255	275	295
Min Seatpost Insertion	80	80	80	80	80	80
Reach	412	432	452	477	502	532
Saddle Width	155mm	143mm	143mm	143mm	143mm	143mm
Seat Tube Angle	78	77.2	76.7	76.2	76.2	76.2
Seat Tube Length	380	390	405	425	445	465
Seatpost Length	125mm	125mm	150mm	175mm	175mm	200mm
Stack	605	617	626	635	644	653
Stem Length	35mm	50mm	50mm	50mm	50mm	50mm
